Logic Simulator

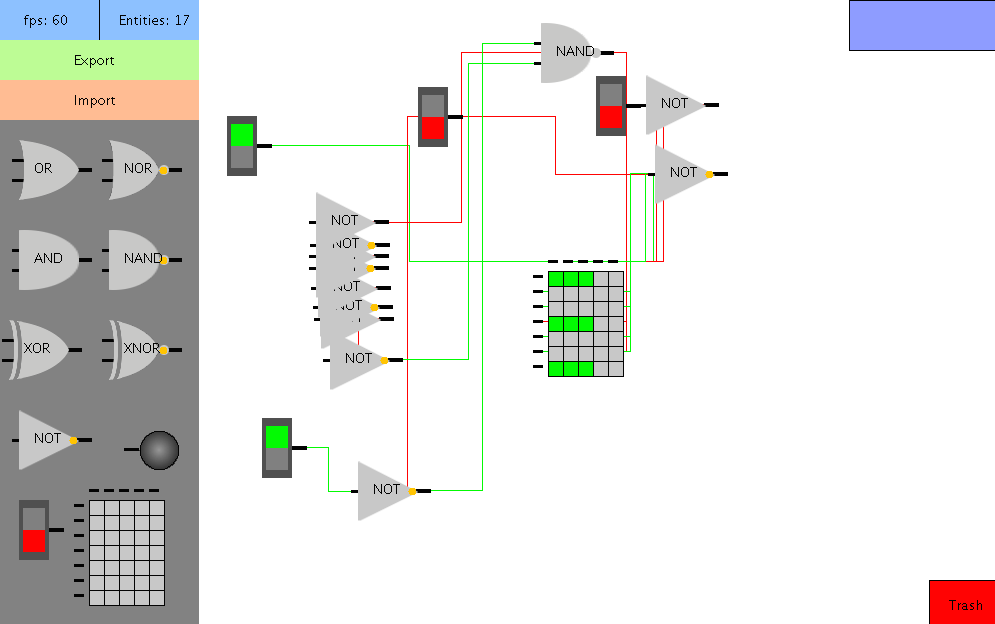

This program is a logic simulator. That means that it visually simulates logic gates such as AND, OR, and NOR. Just drag the gates from the menu on the side and onto the screen. To connect gates, click on the output of one gate, then on the input of another gate (or itself).
|
